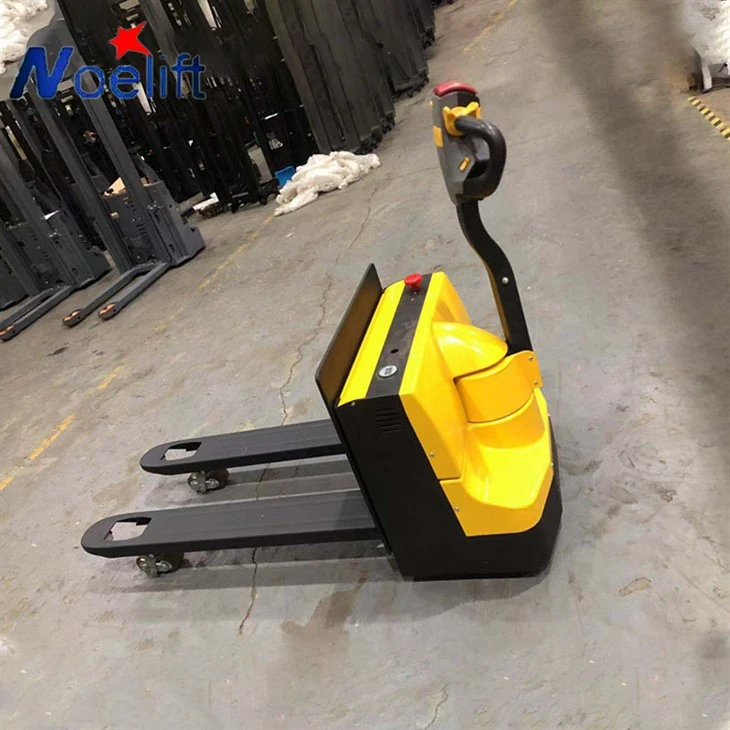

ECONOMICAL FULL ELECTRIC PALLET TRUCK

Lub Noelift hluav taws xob pallet tsheb forklift koom ua ke nrog cov cuab yeej siv hluav taws xob zoo tshaj plaws, kev tiv thaiv kev ua haujlwm tshiab, ua rau tib neeg-tshuab tuav, thiab lub zog muaj zog.

Lub tshuab hluav taws xob pallet tsheb forklift txais cov khoom lag luam paub tab thiab kev sib txuas ua ke, ua rau kev tshuaj xyuas thiab kev saib xyuas yooj yim heev; thiab nws hnyav tsuas yog ntau tshaj 200 kilograms, ua kom yooj yim rau kev thauj thiab tuav. Tsis tas li ntawd, nws yog qhov me me, tsawg dua 1.6 meters ntev, thiab muaj lub vojvoog tig me me, ua rau nws tsim nyog rau kev ua haujlwm hauv qhov nqaim.

Lub sijhawm ua haujlwm tas mus li ntawm kev thauj khoom tag nrho yog txog 6 teev, uas tuaj yeem ua tau raws li koj qhov kev tuav haujlwm thiab zam ntau yam kev them nqi cuam tshuam rau kev ua haujlwm; qhov siab ntawm rab rawg yog txo mus rau 80mm, haum rau ntau yam pallet qhov siab;

Cov rib-type reinforced diav rawg ceg tsim muaj zog dua li cov tsoos tiaj tiaj-hom diav rawg ceg; lub multi-functional kov lub taub hau tsim integrates lub hwj chim meter, lub hwj chim meter, tswj teeb liab teeb thiab lub lag luam khawm, ua rau lub lag luam yooj yim thiab yooj yim dua.



Feature
		Tus qauv tsim			ET 15 M
	1.1	Load peev	Q	kg	1500
	1.2	Chaw thau khoom	C	mm	600
	1.3	Kev ua haujlwm			taug kev
	1.4				TSIS MUAJ
Qhov ntev	2.1	Nqa qhov siab	H1	mm	85~200
	2.12	Fork qhov siab, qis dua	H	mm	200
	2.13	Min diav rawg qhov siab	H2	mm	85
	2.14	Kov qhov siab ntau thaum tsav tsheb	H5	mm	1150
	2.15	Lub cev qhov siab	H4	mm	695
	2.2	diav rawg	B1	mm	560 / 680
	2.3	diav rawg ntev	L	mm	1150
	2.4	diav rawg thickness	S	mm	54
	2.5	diav rawg dav	E	mm	160
	2.6	Zuag qhia tag nrho ntev	L1	mm	1610
	2.7	Lub cev ntev	L2	mm	458
	2.8	Dav dav	B	mm	700
	2.9	Hloov lub vojvoog	Ua	mm	1415
	2.91	Aisle dav, 800 × 1200 pallet, hla	Ast	mm	2300
	2.92	Aisle dav, 1000 × 1200 pallet, hla	Ast	mm	2400

Kev ua tau zoo	3.1	MAX.Travel speed	nrog load		km/h	2.5	2.5
			tsis muaj load		km/h	3	3
	3.2	MAX.Lifting ceev	nrog load		m/s	0.035	0.035
			tsis muaj load		m/s	0.045	0.045
	3.3	MAX.Lowing ceev	nrog load		m/s	0.05	0.05
			tsis muaj load		m/s	0.04	0.04
	3.4	nce kev muaj peev xwm	nrog load		%	5	5
			tsis muaj load		%	7	7
Qhov hnyav	4.1	Kev pabcuam hnyav (tsis muaj roj teeb)			kg	275	285
	4.2	Kev pabcuam hnyav (nrog roj teeb)			kg	325	335
Lub log	5.1	Lub log				PU	PU
	5.2	Tsav log / load log kom muaj nuj nqis				3	3
	5.3	Tyre loj, tsav	D1		mm	210	210
	5.4	Log tsheb loj, load	D2		mm	78	80
	5.5	Pab lub log loj			mm	80	70
	5.6	Log Base	Y		mm	1255	1265
Tsav tsheb	6.1	Tsav lub cev muaj zog			kws	0.65	0.75
	6.2	Nqa lub cev muaj zog			kws	0.8	0.8
	6.3	Roj teeb voltage			V	24	48
	6.4	Roj teeb ntsuas muaj peev xwm			Ah	80	30
	6.5	Roj teeb qhov ntev			mm	269×169×215	120 * 220 * 340 (lithium roj teeb)
	6.6	Tsav tsheb nres
	6.7	Kev pabcuam nres
	6.8	Tus tswj				1212P -2501 (CURTIS)	SIB 48S05





Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
Factory + Trade Company
Peb muaj peb tus kheej lub Hoobkas nrog 10 xyoo kev paub hauv trailer ntau lawm.Tsis tas li ntawd peb muaj lub Hoobkas hloov kho rau cov tsheb thauj khoom. Dhau li ntawm cov tsheb thauj khoom thiab cov tsheb thauj khoom, ntau yam thoob ntiaj teb lub ntiaj teb txav tshuab muaj.

Q2: Koj lub tuam txhab nyob qhov twg?
Peb nyob hauv SARAWAK, Malaysia, pib los ntawm 2015, muag rau . Muaj tag nrho txog 51-100 tus neeg nyob hauv peb lub hoobkas.

Q3: Koj puas muab cov khoom seem?
Yog lawm, peb muab cov khoom seem.Tsuas xa peb cov npe ntawm cov khoom siv uas koj xav tau.

Q4: Lub sijhawm lav zoo ntev npaum li cas?
Peb muab 6 lub hlis warranty.

Q5: Kuv tuaj yeem them nyiaj li cas?
Telegraphic hloov lwm lub tsev, 30% deposit thiab tshuav nyiaj li cas yuav tsum tau them ua ntej cov zaub mov xa tuaj.



NOELIFT EQUIPMENT CO., LTD,ua haujlwm hauv forklift muaj ntau tshaj 10 xyoo. Peb muaj tus neeg sawv cev hauv Malaysia thiab Peru thiab Canada. Yog tias koj tab tom nrhiav kev koom tes mus ntev, txais tos kom loj hlob ua ke nrog peb!



Cim npe nrov: Kev lag luam tag nrho hluav taws xob pallet tsheb, Tuam Tshoj kev lag luam tag nrho hluav taws xob pallet tsheb tuam ntxhab
