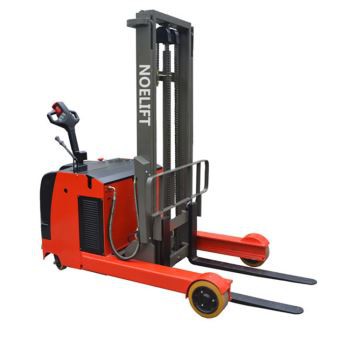

Narrow Aisle Reach Electric Stacker
1, Nqaim Chassis nplua rau nqaim asiles.2, 7.2M nqa qhov siab tsis muaj teeb meem. 3, Dav pom mast, mos thiab xis tsim.
Xa kev nug
Khoom Taw qhia
Narrow Aisle ncav cuag Electric Stacker
Qhov zoo:
1. Txhua lub log nres: nruab nrog lub log pem hauv ntej thiab lub log tsheb nres, cov nyhuv braking zoo dua, thiab nws tuaj yeem siv rau hauv av ntub thiab dej khov, ua rau kev ua haujlwm zoo rau cov neeg ua haujlwm;2. Ergonomic tsim: yooj yim lag luam bar tsim thiab multi-functional ntse ntsuas vaj huam sib luag, nrog lub log zaub muaj nuj nqi, ua haujlwm zoo dua thiab yooj yim dua; Lub rooj zaum pem hauv ntej thiab nram qab tuaj yeem hloov kho kom haum rau qhov chaw ua haujlwm zoo tshaj plaws rau tus neeg teb xov tooj.
Ntawv pov thawj:
Peb lub Hoobkas:
| Chaw tsim tshuaj paus | NOELIFT | |||||
| Qauv | TFZ20-30 | TFZ20-45 | TFZ20-75 | TFZ20-80 | TFZ20-90 | |
| Lub zog | Hluav taws xob | Hluav taws xob | Hluav taws xob | Hluav taws xob | Hluav taws xob | |
| Kev ua haujlwm | zaum | zaum | zaum | zaum | zaum | |
| Muaj peev xwm | kg | 2000 | 2000 | 2000 | 2000 | 2000 |
| Chaw thau khoom | mm | 500 | 500 | 500 | 500 | 500 |
| pem hauv ntej overhang | mm | 215 | 215 | 205 | 205 | 205 |
| Kev pabcuam hnyav (nrog roj teeb) | kg | 3443 | 3824 | 3824 | 3824 | 3824 |
| Lub log | Khoom PU | Khoom PU | Khoom PU | Khoom PU | Khoom PU | |
| Nqa qhov siab | mm | 3000 | 4500 | 7500 | 8000 | 9000 |
| Mast Lowered Height | mm | 2175 | 2251 | 3250 | / | / |
| Sawv qhov siab | mm | 376 | 376 | 376 | 376 | 376 |
| Zuag qhia tag nrho ntev | mm | 2432 | 2432 | 2432 | 2432 | 2432 |
| Dav dav | mm | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 |
| Fork loj | mm | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 |
| tswj qhov system | Hydraulic thiab hluav taws xob | |||||
| Roj teeb | V/AH | 48/560 | 48/560 | 48/560 | 48/560 | 48/560 |
| Tsav lub cev muaj zog | kws | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Lifting lub cev muaj zog | kws | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 |
| Mus txog deb | mm | 617 | 617 | 617 | 617 | 617 |
| Overhead guard qhov siab | mm | 2200 | 2200 | 2200 | 2200 | 2200 |
| txoj kev nres | Neeg kho tshuab | |||||
