Peb Pivot Counterbalanced Lub Teeb Forklift Nrog Cov Me Me
TKA peb-pivot counterbalanced forklift TKA peb-pivot counterbalanced forklift yog lub teeb forklift, vim nws qhov me me, Lub teeb yuag, tsim nyog rau qhov chaw me me thiab ua haujlwm hauv pem teb Haum rau: kab rov tav tuav, stacking hauv nqaim aisles
Xa kev nug
Khoom Taw qhia

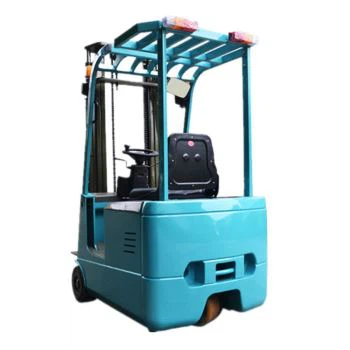

TKA peb-piot counterbalanced forklift
| Txuj | |||
| 1.1 | Chaw tsim tshuaj paus | NOELIFT | |
| 1.2 | Qauv | TKA 10 | |
| 1.3 | Hom fais fab | Roj teeb | |
| 1.4 | Hom kev ua haujlwm | Tsav style | |
| 1.5 | Rated Peev Xwm | Q (kg) | 1000 |
| 1.6 | Load Center | C (mm) | 500 |
| 1.8 | Pem hauv ntej Overhand | x (mm) | 168 |
| 1.9 | Wheelbase | y (mm) | 975~990~1020 |
| Qhov hnyav | |||
| 2.1 | Qhov hnyav Service (incl.battery) | kg | 1700 |
| 2.2 | Qhov hnyav faib thaum thauj khoom,tsav sab / load sab | kg | 335 /2365 |
| 2.3 | Qhov hnyav faib thaum tshem tawm,tsav sab / load sab | kg | 1045 /655 |
| Lub log | |||
| 3.1 | Hom log | PU | |
| 3.2 | Load Log | mm | φ285×100 |
| 3.3 | Tsav lub log | mm | φ230×110 |
| 3.5 | Tus lej ntawm lub log,, pem hauv ntej / nram qab (x= tsav log) | 2 / 1X | |
| 3.6 | Log tread, tsav sab | b10 (mm) | / |
| 3.7 | Log tread, load sab | b11 (mm) | 804 |
| Loj | |||
| 4.1 | Mast tilting | / ( degree) | 2/4 |
| 4.2 | Mast kaw qhov siab | h1 (mm) | 1995 |
| 4.3 | Dawb nqa qhov siab | h2 (mm) | 110 |
| 4.4 | Nqa qhov siab | h3 (mm) | 3000 |
| 4.5 | Mast ncua qhov siab | h4 (mm) | 3530 |
| 4.7 | Overhead guard qhov siab | h6 (mm) | 1965 |
| 4.8 | Rooj siab | h7 (mm) | 930 |
| 4.19 | Zuag qhia tag nrho ntev | L1 (mm) | 2330 |
| 4.20 | Length rau fork ntsej muag | L2 (mm) | 1410 |
| 4.21 | Dav dav | b1 / b2 (mm) | 912 |
| 4.22 | Fork loj | l/e/s (mm) | 920/100/35 |
| 4.23 | Installation theem | 2A | |
| 4.24 | Fork carriage dav | b3 (mm) | 620 |
| 4.25 | Fork sab nraum qhov dav | b5 (mm) | 220-620 |
| 4.31 | Mast av clearance | m1 (mm) | 90 |
| 4.32 | Lub cev clearance | m2 (mm) | 90 |
| 4.34.1 | Aisle dav rau pallet 1000 * 1200 | Ast (mm) | 2760 |
| 4.34.2 | Aisle dav rau pallet 800 * 1200 | Ast (mm) | 2870 |
| 4.35 | Hloov lub vojvoog | Qhov (mm) | 1255 |
| Muaj nuj nqi | |||
| 5.1 | Tsav ceev (load / unload) | km/h | 6/7 |
| 5.2 | Lifting ceev (load / unload) | mm/s | 150/190 |
| 5.3 | Tsawg ceev (load / unload) | mm/s | 200/130 |
| 5.5 | Traction peev (load / unload) (S{0}}min) | N | / |
| 5.8 | Max.Gradeability(load/unload)(S{0}}min) | feem pua (tanθ) | 8/10 |
| 5.10 | Nres hom | Hydraulic thiab Electromagnetic | |
| Tsav | |||
| 6.1 | Tsav lub cev muaj zog (S2-60min) | kws | 1.5 |
| 6.2 | Lifting motor(S{0}} feem pua) | kws | 2 |
| 6.4 | Roj teeb voltage / muaj peev xwm | V/Ah | 24/300 |
| 6.5 | Roj teeb hnyav | kg | 277 |
| 6.6 | Steering system | EPS | |
TKA peb-piot counterbalanced forklift yog lub teeb forklift, vim nws qhov me me,
Lub teeb yuag, haum rau qhov chaw me me thiab ua haujlwm hauv pem teb
Haum rau: kab rov tav tuav, stacking nyob rau hauv nqaim aisles
